Technical Guide

Resistor basics, packaging standards and color-code charts — technical references for sourcing and design.

BASICS

What is a Resistor? — The Basics

A resistor is the most fundamental passive component, limiting current and dividing voltage in a circuit. The materials below cover principles, types, construction and applications. (Charts are in Korean; contact us for assistance.)

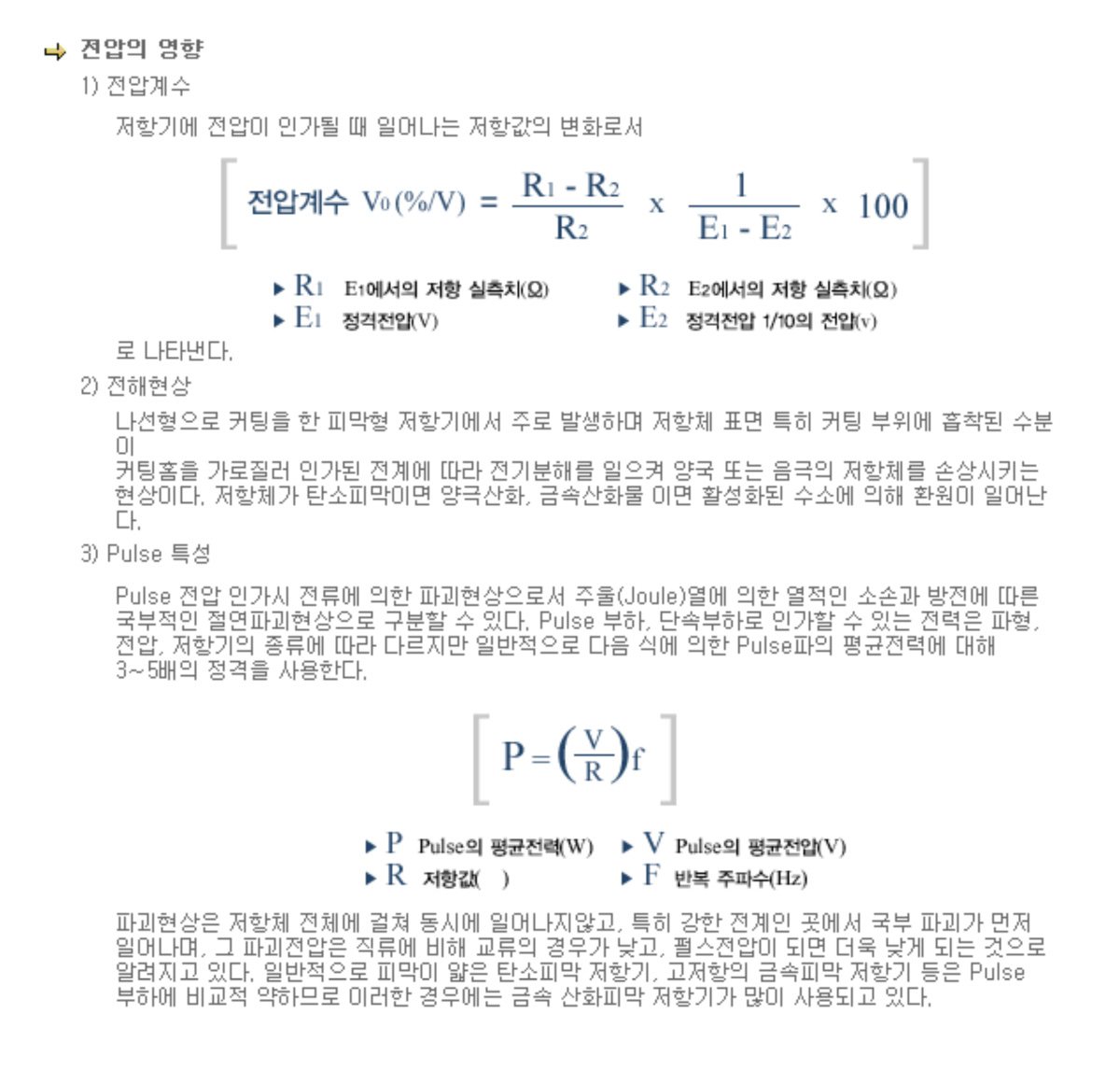

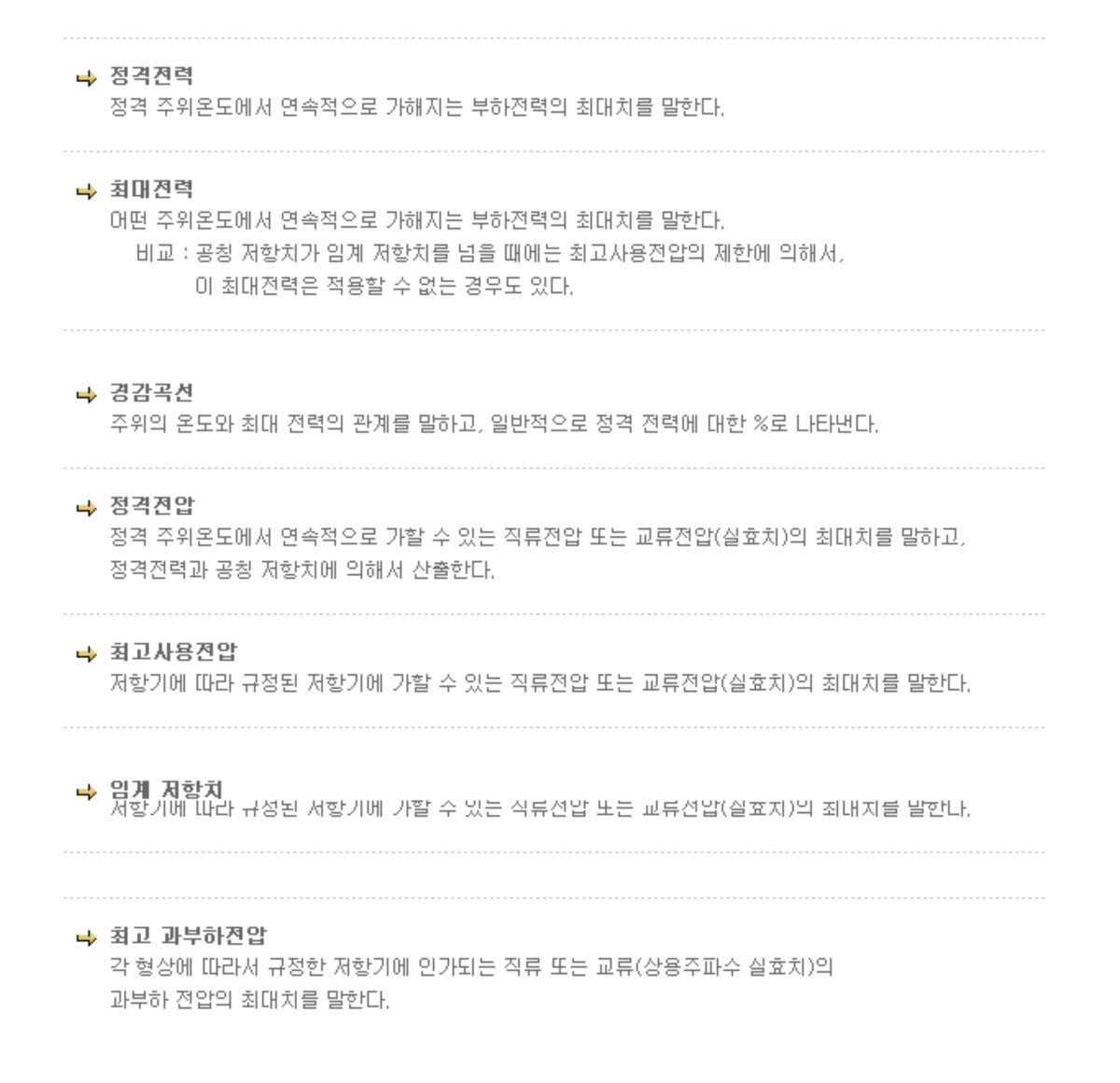

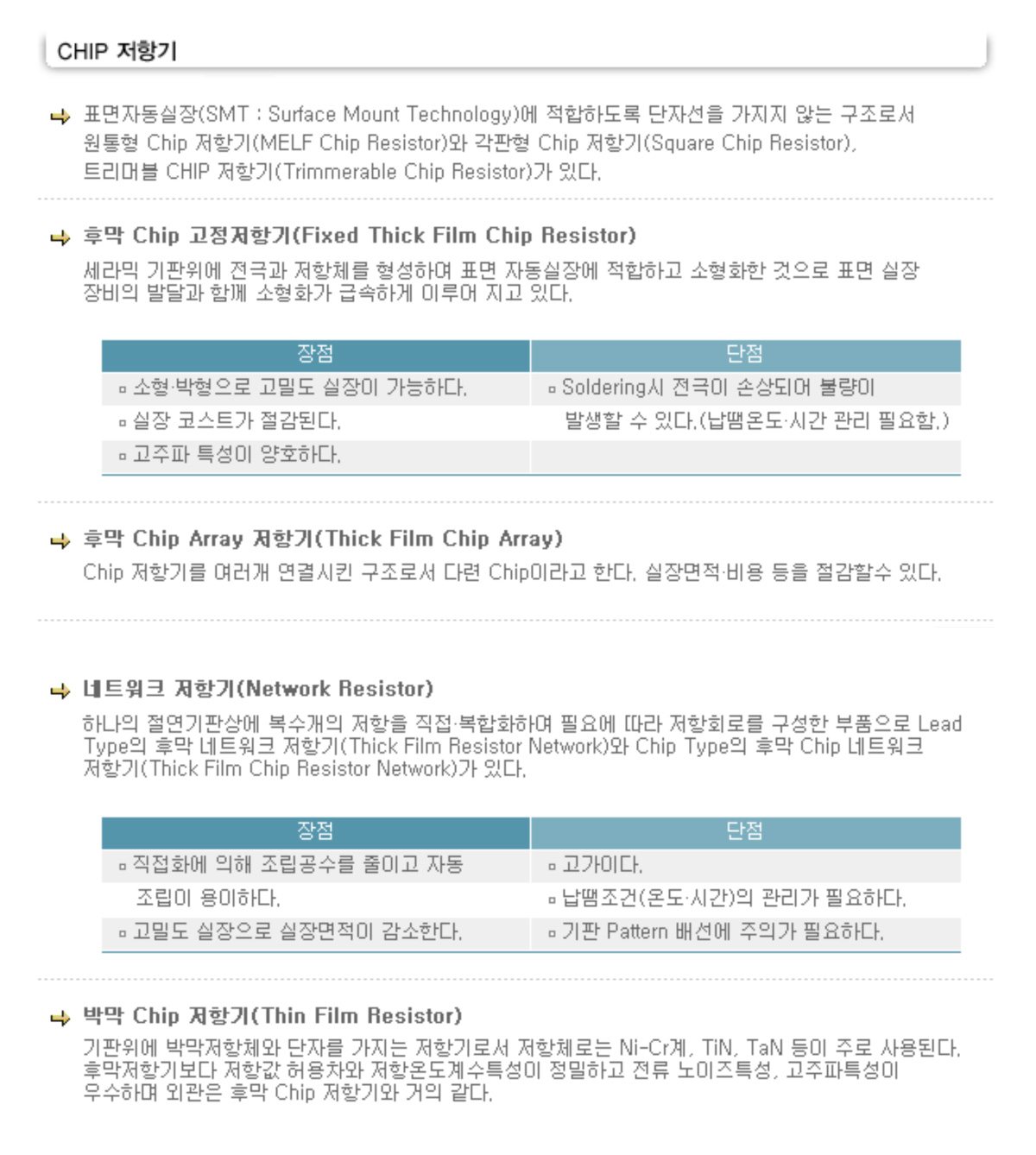

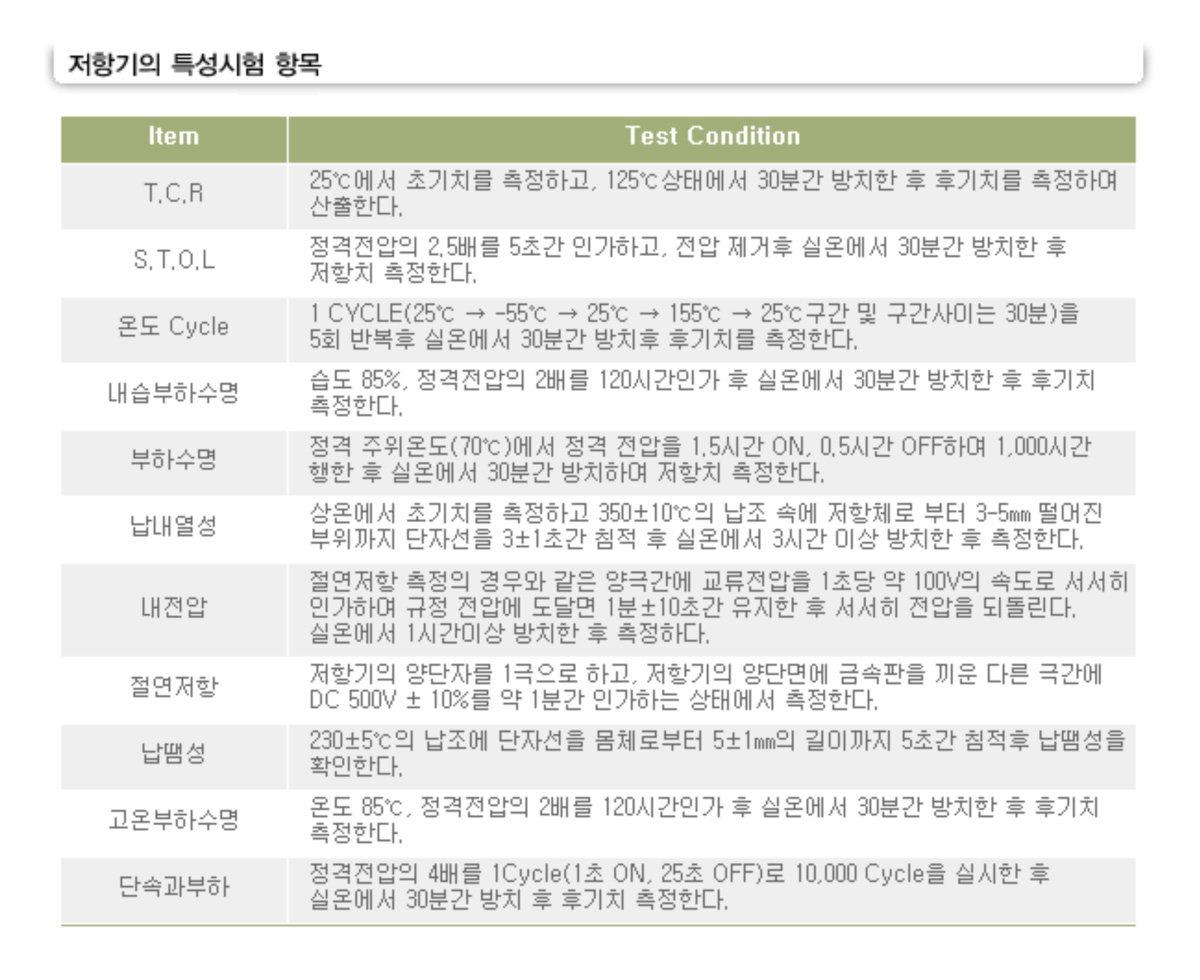

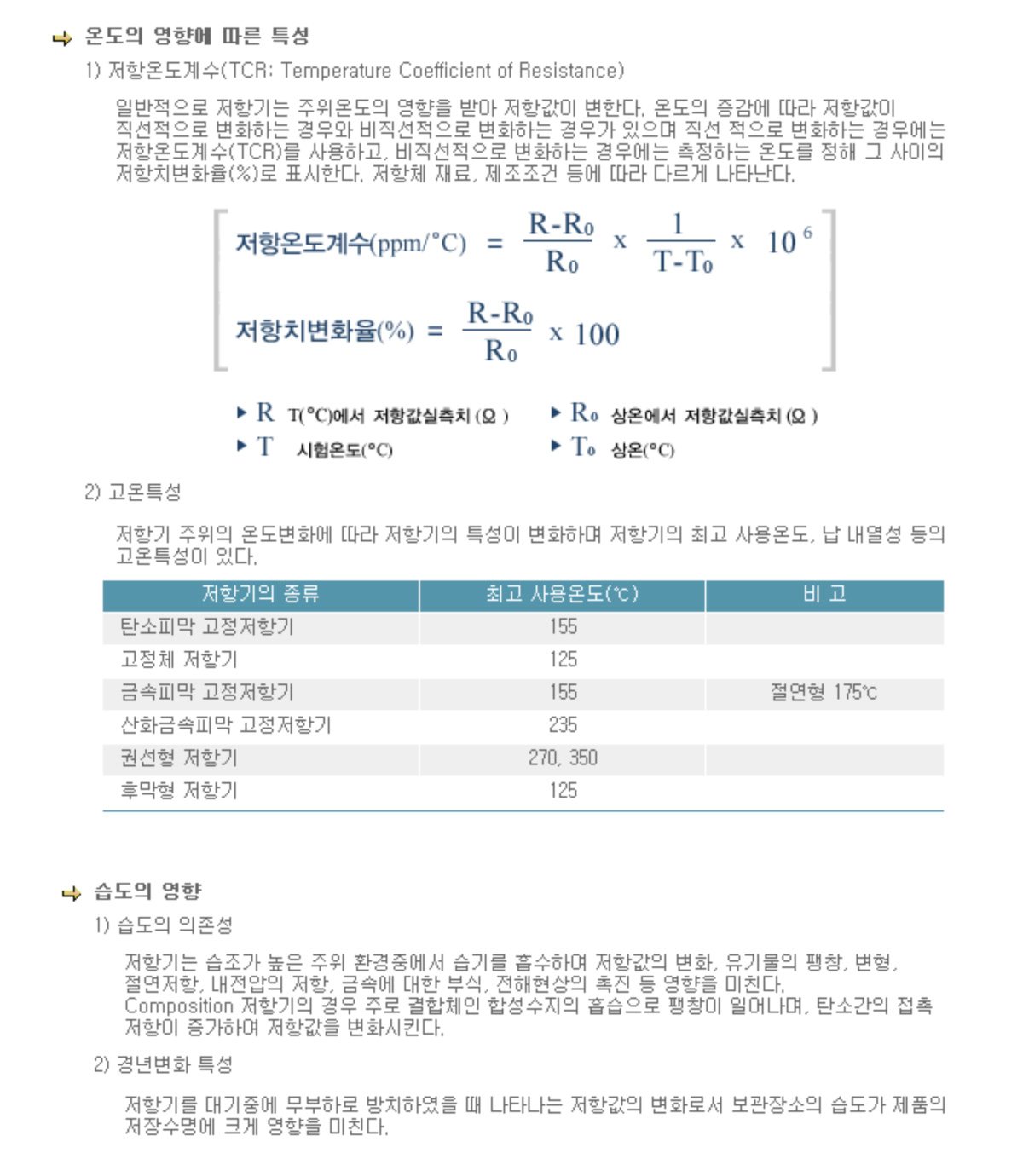

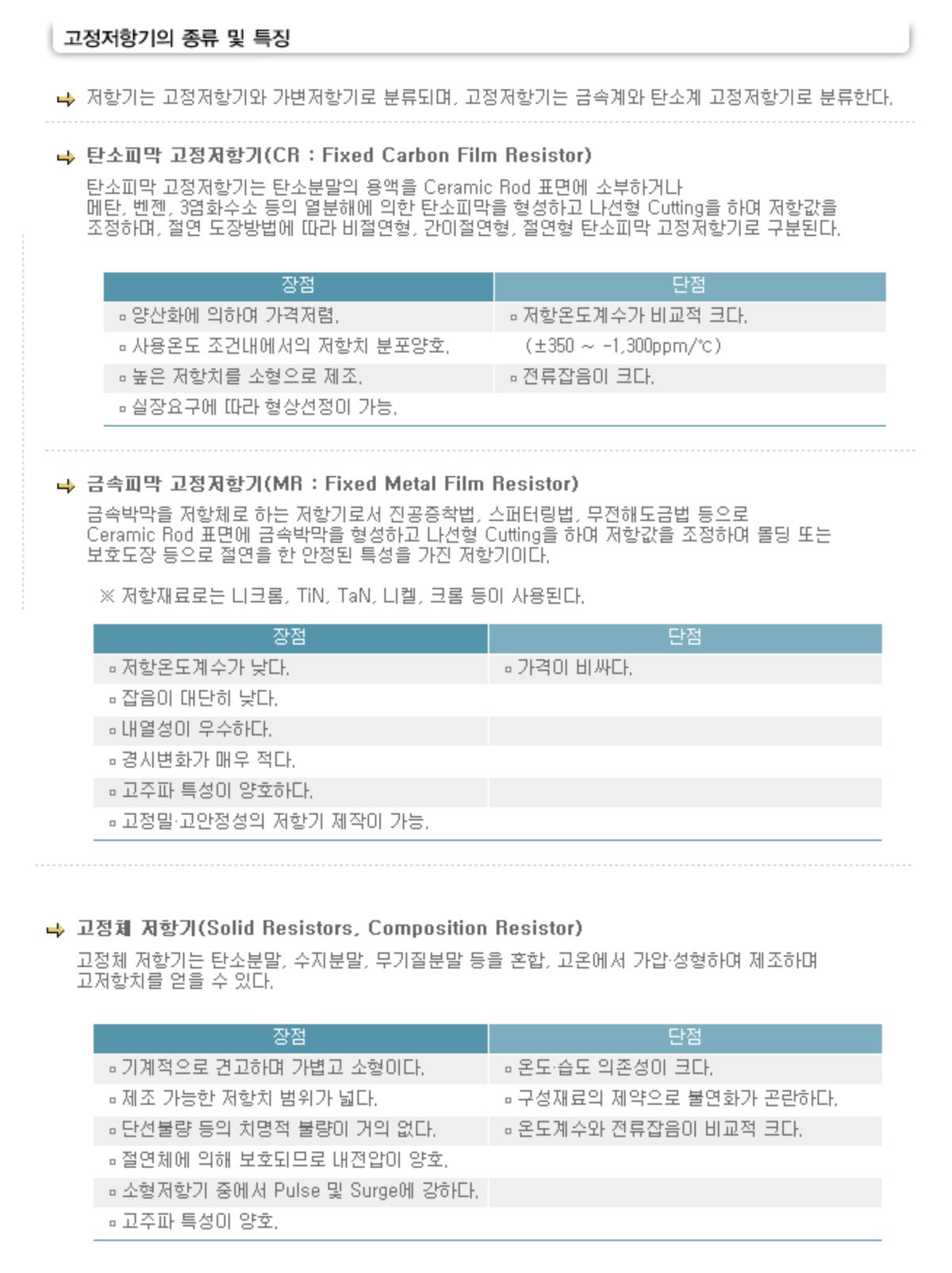

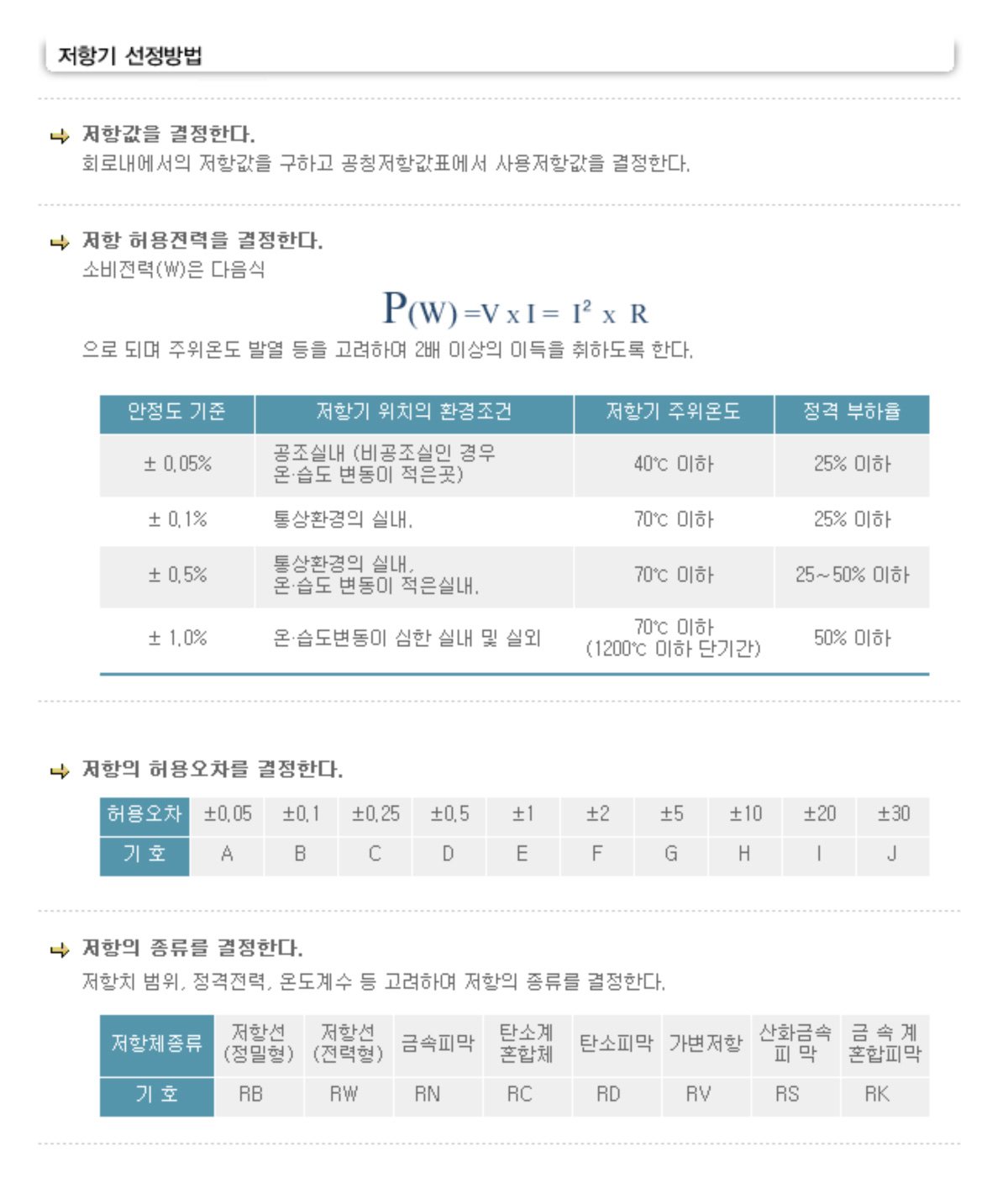

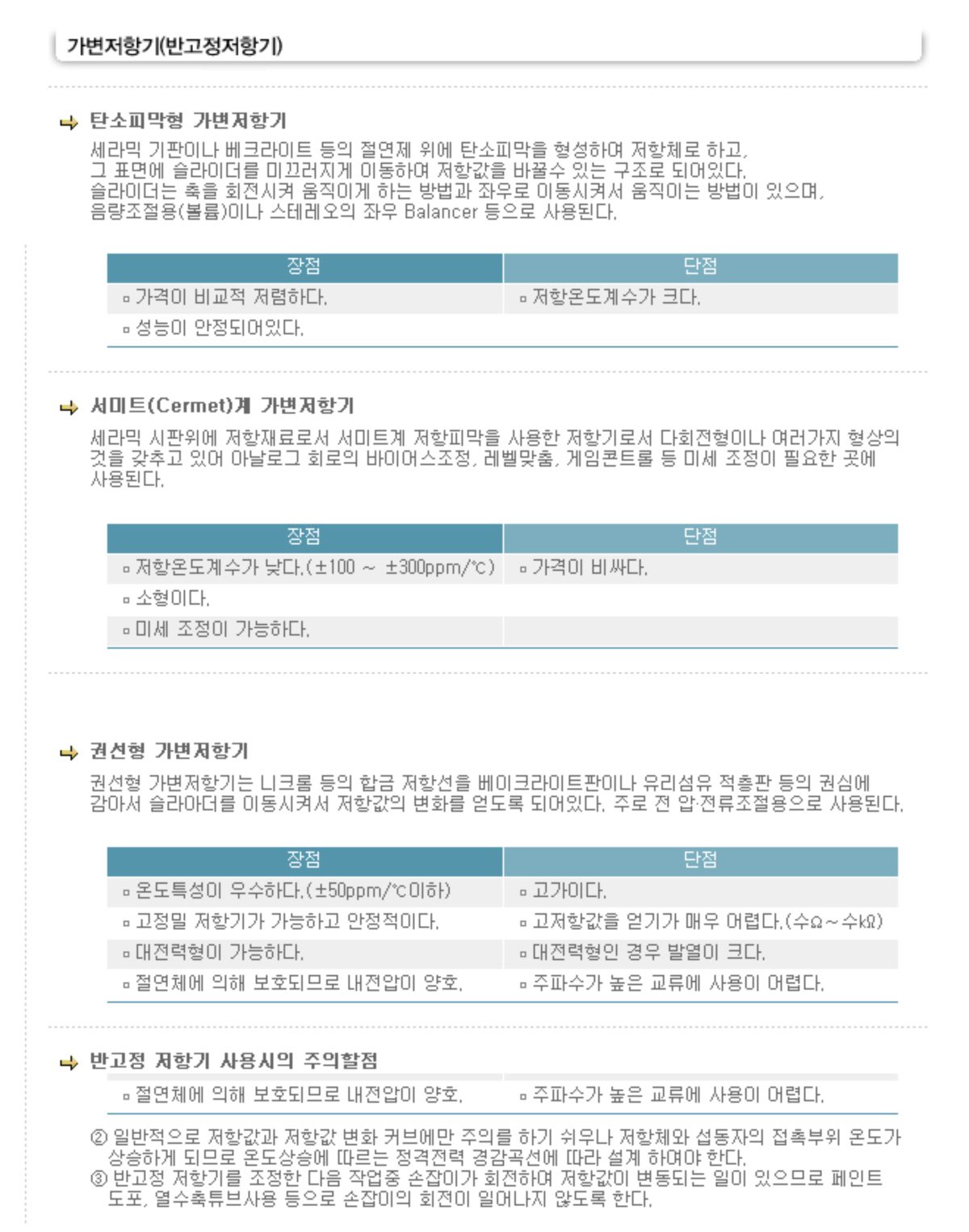

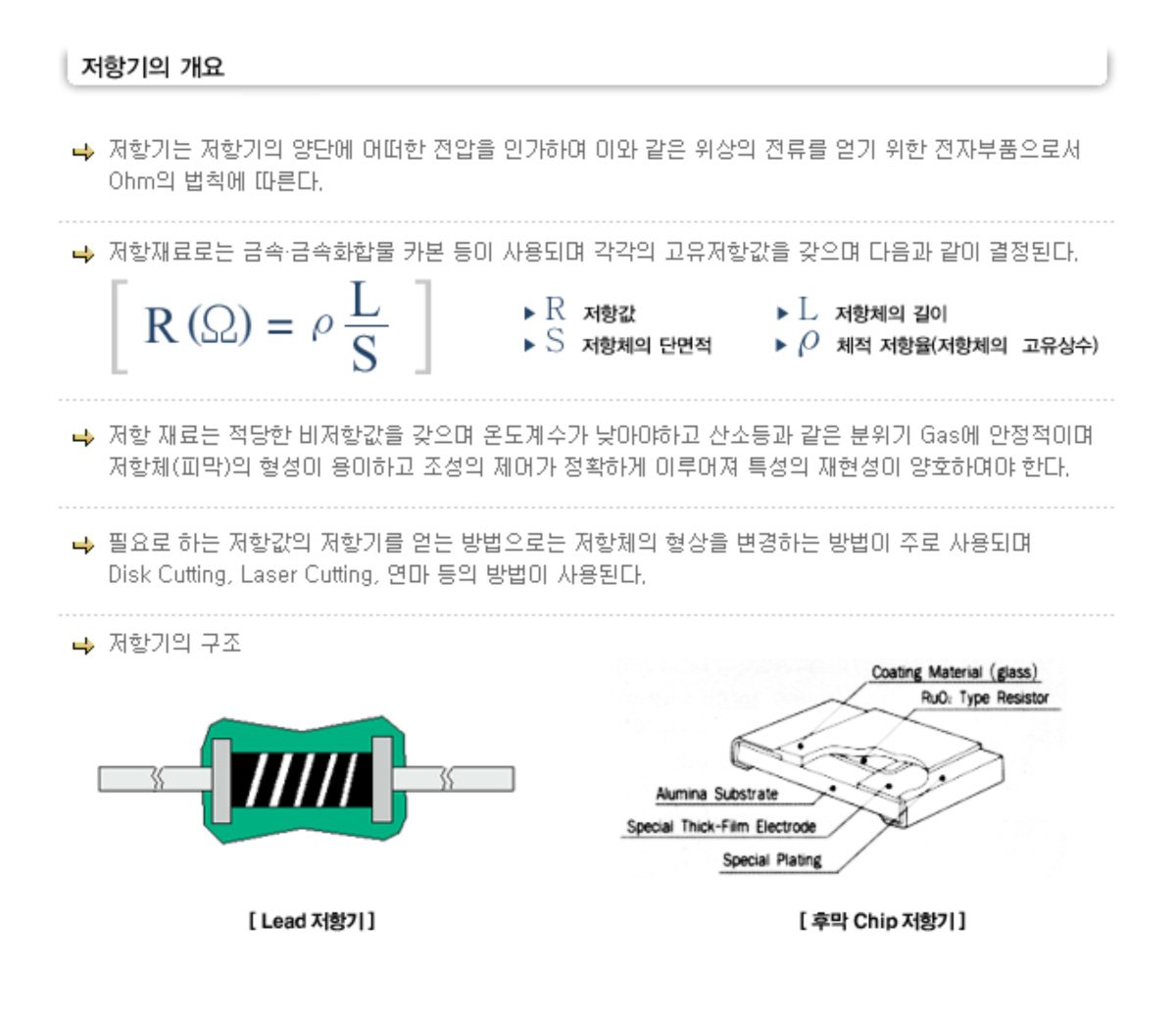

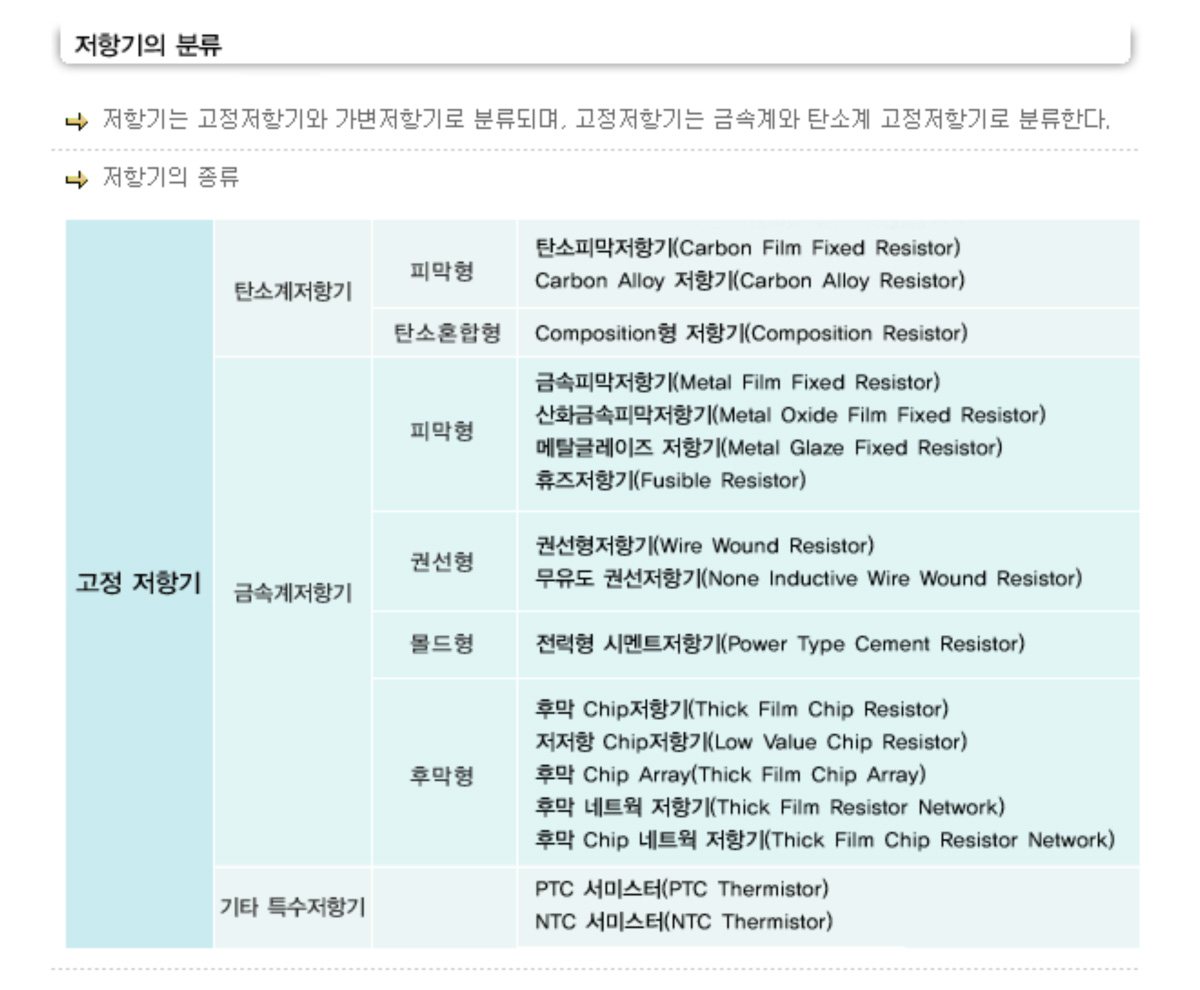

What is a Resistor? — The Basics 1/17 What is a Resistor? — The Basics 2/17 What is a Resistor? — The Basics 3/17 What is a Resistor? — The Basics 4/17 What is a Resistor? — The Basics 5/17 What is a Resistor? — The Basics 6/17 What is a Resistor? — The Basics 7/17 What is a Resistor? — The Basics 8/17 What is a Resistor? — The Basics 9/17 What is a Resistor? — The Basics 10/17 What is a Resistor? — The Basics 11/17 What is a Resistor? — The Basics 12/17 What is a Resistor? — The Basics 13/17 What is a Resistor? — The Basics 14/17 What is a Resistor? — The Basics 15/17 What is a Resistor? — The Basics 16/17 What is a Resistor? — The Basics 17/17
PACKAGING

Packaging Standards

Standard packaging for R.P resistors — taping (TB·TC·RT) and bulk (PS). Specified by the Shape code when ordering.

Packaging Standards
COLOR CODE

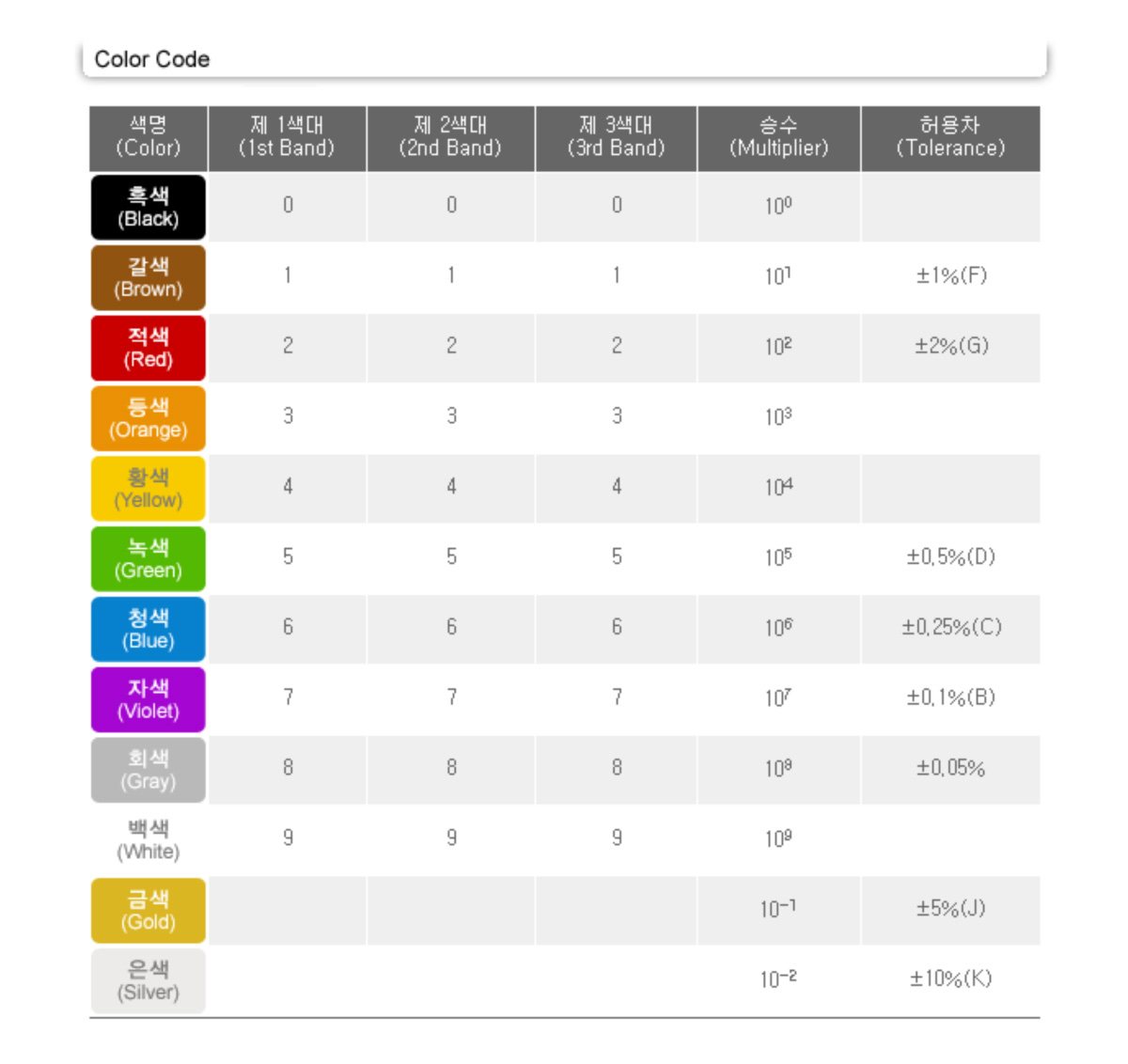

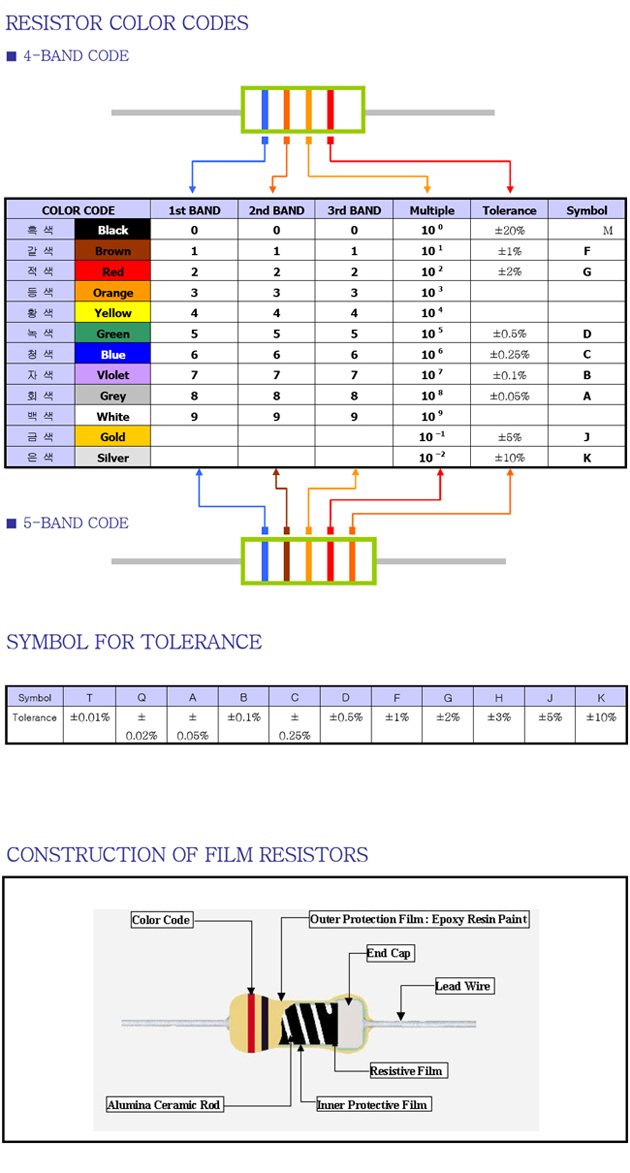

Color Code & Tolerance Symbols

How to read the color bands on leaded resistors, with the tolerance symbol table (J·K·F·G, etc.).

Color Code & Tolerance Symbols
